MFC2046 Magnetic Field Camera
MRI and NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... spectroscopy applications require a highly uniformSee homogeneous. magnetic field, within at most a few ppmParts per million, or 10-6. Bigger than a ppb, but still pretty darn small..... NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... is the only magnetic measurement technique capable of providing a field map with that degree of precisionPrecision is how closely multiple measurements will be clustered. Also called reproducibility or repeatability. In everyday speech, often confused with....
Introduced 25 years ago, Metrolab’s NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... Magnetic Field Cameras have revolutionized field mappingThe process of measuring magnetic field intensity at many different points, in order to understand the structure of the field... for MRI magnets. They reduced acquisition times from hours to minutes, positioning errors to fractions of a millimeter, and they rendered human and driftThe gradual loss of an instrument's accuracy. NMR teslameters drift because their time base drifts; this can be easily checked and... errors negligible. Now, meet the latest generation NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... Magnetic Field Camera, the MFC2046! Map any magnet with the New generation of MFC probeThe actual sensor that is placed in the magnetic field. The NMR probe contains the NMR sample; the Hall probe... arrays.
Small and large magnet bores
ShimmingIn magnet production, the process of making a magnetic field more homogeneous, by placing pieces of iron (shims) in the...
Field model validation
DecayFor superconducting magnets, decay refers to the infinitesimally small and slow loss of current and corresponding decrease in magnetic field.... and noise monitoring
Downloads
Unbeatable speed and precision
Metrolab’s NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... Magnetic Field Cameras provide an unbeatable combination for high-precision magnetic field mappingThe process of measuring magnetic field intensity at many different points, in order to understand the structure of the field...:
- Magnetic measurement: advanced NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... technology can provide resolutionResolution measures the ability of a magnetometer to distinguish ("resolve") two nearly identical field values. Related to precision, but not to... of 10 ppbParts per billion, or 10-9. 1 ppb is 10-7 % - not very much at all!... (ten parts per billion, or 10-8)
- Mechanical positioning: precisionPrecision is how closely multiple measurements will be clustered. Also called reproducibility or repeatability. In everyday speech, often confused with... construction yields overall positioning tolerances well under 1 mm
- Measurement speed: dozens of probes means a map takes roughly five minutes.
Small bore magnets
The MFC2046 can map magnets with bores as small as 40 mm. For comparison, the smallest previous generation Probe ArrayFor Metrolab's Magnetic Field Camera, the probe array is a semi-circular plate holding up to 32 NMR probes.... was for a 220 mm boreThe centre of a solenoidal magnet, where the magnetic field is concentrated..... NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... spectroscopy magnets are elegantly handled by the new mini Probe ArrayFor Metrolab's Magnetic Field Camera, the probe array is a semi-circular plate holding up to 32 NMR probes.... MFC9146, whereas the classic Metrolab Probe-Array MFC9046 supports whole-body MRI, extremity MRI, or small-animal MRI, from 150 mm to 600 mm DSV.
Extended measurement range
The MFC2046 maps magnetic fields from 0.2 T to 30 T (1.1 GHz). For comparison, previous generation systems were limited to 7 T.
Many NMR probes
Previous generation systems were limited to 32 NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... probes per probe arrayFor Metrolab's Magnetic Field Camera, the probe array is a semi-circular plate holding up to 32 NMR probes..... The MFC2046 shatters that limitation, supporting arrays with up to 255 measurement points.
Single point as well as mapping
The MFC2046 can accept either NMRNuclear Magnetic Resonance. A resonance phenomenon seen when you irradiate a sample in a magnetic field with an RF field.... ProbeThe actual sensor that is placed in the magnetic field. The NMR probe contains the NMR sample; the Hall probe... Arrays, or single-point NMR probes. This unprecedented flexibility means that your manufacturing and service personnel now only need one instrument for field-mapping or single point measurements. The latter provide update rates of up to 33 Hz, allowing low frequency magnetic noise to be detected in real time.
Probe arrays with a wide-range probe
The MFC9046 ProbeThe actual sensor that is placed in the magnetic field. The NMR probe contains the NMR sample; the Hall probe... Arrays can optionally include one wide-range probeThe actual sensor that is placed in the magnetic field. The NMR probe contains the NMR sample; the Hall probe..., equivalent to a PT2026 NMR probe. This renders your workflow even more efficient: the Probe ArrayFor Metrolab's Magnetic Field Camera, the probe array is a semi-circular plate holding up to 32 NMR probes.... is now left in the magnet during field rampingThe process of injecting current to bring the field up to the operational field. Used particularly for superconducting magnets...., avoiding switching measurement fixtures!
USB and Ethernet interfaces
The MFC2046 connects to your computer via USB or Ethernet, using industry-standard protocols and a well-documented command set.
User-friendly software
With the MFC2046, Metrolab introduces a completely rewritten User Interface, MFCTool Version 10. A specialized display for each task in the typical production workflow makes the software easy to learn and quick to use. In addition to the “classic” Metrolab file format, Version 10 introduces a powerful new XML-based format, as well as a plugin module to recover the measurement results in real-time. The same software supports the previous generation Magnetic Field Camera MFC3045.
A complete kit

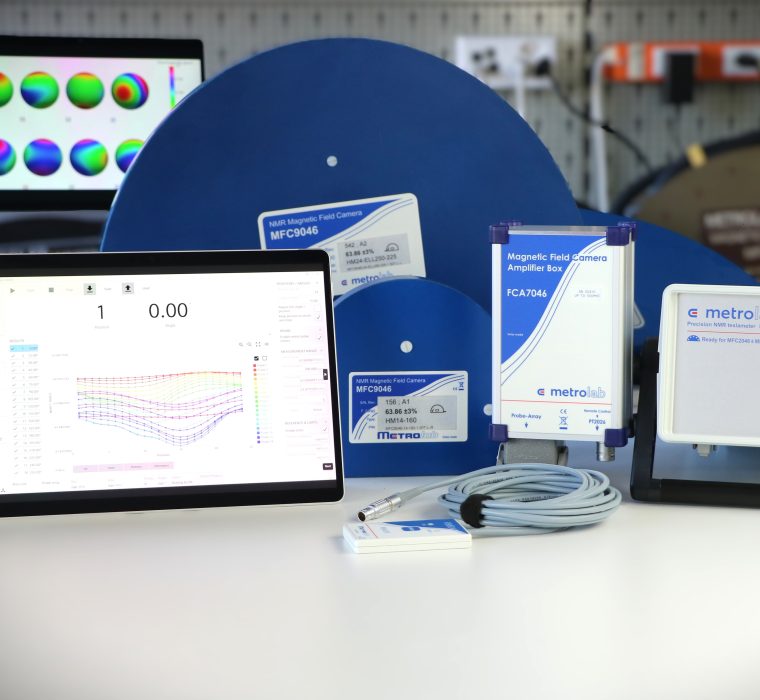

The MFC2046 Main Unit consists of a PT2026 NMR Precision Teslameter with the Camera firmware option, an FCA7046 Field Camera Amplifier, a 3026-10M Cable, and the MFCTool software. In addition, you will need a Probe ArrayFor Metrolab's Magnetic Field Camera, the probe array is a semi-circular plate holding up to 32 NMR probes.... (see below), or you can also plug in any PT2026 probe or multiplexer.
Develop your own MFC software
If you prefer to develop your own MFC software instead of using the MFToolV10, Metrolab provides a “C++ instrument catalog” interface to simplify and speed-up your code development.
The MFC “C++ instrument catalog” is available in the download section. For more details, read the documentation available in the “C++ instrument catalog” package.
We are not yet, supporting the MFC3045 system camera in the “C++ instrument catalog”, but this integration is coming-up.
Beware, do not use PT2026 SCPI commands when developing new MFC2046 software.
If you need to export data from the instrument, this is possible. Read the MFCToolV10 User’s Manual for more information.
