🧲 EZMag3D Installation Guide

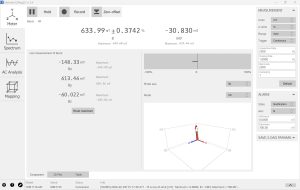

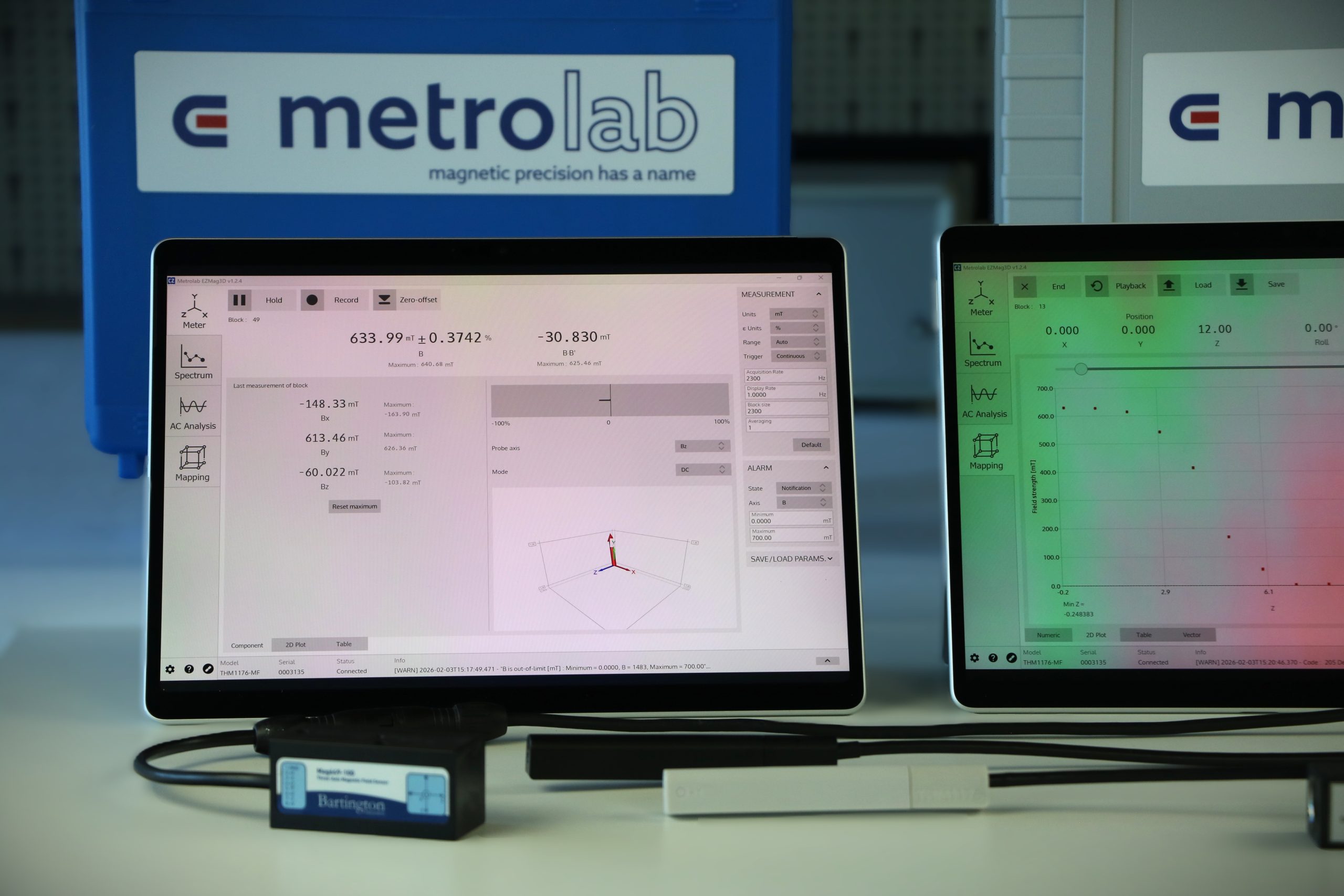

EZMag3D is the new Graphical User Interface software for the Metrolab THM1176 and TFM1186 three-axis magnetometers.
This release supports Windows, macOS, and Linux.
1- ✨ What’s New in This Release
Improvements:
- Zoom behavior in 2D plot
- Playback parameter handling
- Axis precision in 2D plot
Bug Fixes:
- Resolved mapping issues with Raw and Yaw data affecting playback and loaded data
- Device connection now possible even when field is out of range
- Measurement file parameters now correctly override EZMag3D defaults
- Improved alarm handling in AC mode
If you prefer the previous LabVIEW-based version of the THM1176 software, it’s still available on our website.
2- 💻 Windows Installation
✅ Check Your Processor Type
- Open Settings (Windows key + I)
- Go to System > About
- Look for “Processor” or “System type”:
- ARM-based processor / ARM64 → ARM processor
- x64-based processor → Intel or AMD processor
✅ Tip: “x64” = Intel/AMD, “ARM64” = ARM
📦 Installation Steps
Intel processor: ⬇️run EZMag3D v1.2.4 for Windows for Intel.zip⬇️
ARM processor:⬇️run EZMag3D v1.2.4 for Windows for ARM.zip⬇️
After installation, you’ll find:
- A desktop shortcut to EZMag3D
- A Start Menu folder Metrolab with:
- EZMag3D program link
- EZMag3D Manual (online help)
You can also launch EZMag3D via Windows search.
3-🖥️ macOS Installation
✅ Check Your Processor Type
- Click the Apple menu in the top-left corner
- Select “About This Mac”
- Look at the “Chip” or “Processor” line:
- Apple M1, M2, M3 → ARM processor
- Intel(R) → Intel processor
✅ Tip: Apple Silicon (M1, M2, M3) = ARM
📦 Installation Steps
Intel processor:⬇️ run EZMag3D v1.2.4 for MacOS for Intel.zip⬇️
ARM processor:⬇️ run EZMag3D v1.2.4 for MacOS for ARM.zip⬇️
The default installation location is your personal Applications folder.
After installation, you’ll find:
- The EZMag3D app
- A link to the EZMag3D Manual (online help)
You can launch EZMag3D via:
- Double-clicking the icon
- Creating an alias on the Dock or Desktop
- Using Spotlight search
4-🐧 Linux Installation
This release is built and tested for Ubuntu 24.04 with an Intel processor.
If you’re using a different Linux distribution or hardware (e.g., ARM-based systems or older Ubuntu versions), please let us know your setup — we’ll explore how we can support it.
✅ Tip: Ubuntu 24.04 + Intel = ✅ Supported
🛠️ Other setups = Reach out for assistance
📦 Installation Steps
Run⬇️ EZMag3D v1.2.4 for Linux.zip⬇️
- Follow the on-screen instructions
- The installer may require a system reboot
- Default installation location: /opt (admin rights required)
After installation, you’ll find:
- The EZMag3D program
- A link to the EZMag3D Manual (online help)
You can launch EZMag3D via:
- Double-clicking the icon
- GNOME Activities panel
- Command line (EZMag3D.sh shell script)
📬 Need help? Contact us at contacts@metrolab.com
🎉 Enjoy using EZMag3D!
5- ✨ What was New in The V1.2.3 Release
- Accurate Measurements: EZMag3D V1.2.3 now displays measurement accuracy in real-time, ensuring precision in every reading. Take full advantage of the new calibration procedures for the THM1176-MF, offering 0.5% accuracy below 1.5 T.
- High-Speed Acquisition: The latest generation of THM1176, released in Autumn 2024, supports acquisition speeds of up to 8 kHz, a significant upgrade from the previous 1 kHz. EZMag3D V1.2.3 fully supports this high-speed acquisition.
- Simplified Data Analysis: Save your measurements as .xml or .csv files, making data analysis more straightforward and efficient.
- Extended Mapping Functions: Export magnetic field measurements in three axes and coordinates of the data points, providing comprehensive mapping capabilities.
