HallinSight® 3D-Hall Magnetic Field Camera

HallinSight® vectorial magnetic field imaging technology, a true off-the-shelf 3D-Hall Magnetic Field Camera.

Making the invisible visible with true three-axis magnetic field cameras, HallinSight® systems map dynamic magnetic fields in real time. Arrays of 32×32, 16×16, or 32×2 3-axis Hall sensors measure from several μT up to a few T at rates of 25, 100, and 250 Hz, respectively. See the video below for a demonstration.

HallinSight® is a technology developed by Fraunhofer Institute for Integrated Circuits.

Maps all three axes of magnetic field in real time

Standard calibration up to 15 mT

Characterization of dynamic magnetic fields

Measurement ranges 100, 200, 800, 2'000 mT

Unique Vectorial Measurement

The HallinSight® vectorial magnetic field imaging technology enables measuring all three axes of magnetic fields in real-time.
The 3-axis Hall sensors resolve the magnetic field vector with a 4 μT resolution at a rate of up to 1 kHz. This Hall magnetic field camera characterizes static or dynamic magnetic fields.
The HallinSight® technology flexibility makes it possible to measure magnetic fields along a line or in a plane.

Versatile and adaptive technology

Sensor arrays in a robust machined aluminum casing:

– 32 X 32 sensor array, 80 X 80 mm
– 16 X 16 sensor array, 40 X 40 mm

Linear sensor array as an OEM component:

– 32 X 2 linear sensor array, 80 X 2.5 mm

Industrial or research applications

Static fields

– Characterization of magnet and magnet assemblies

Dynamic fields

– Visualization of AC fields

– QC of electrical motors

– Detection of leakage currents

Technical Specifications

– Measurement on a 2.5 mm grid
– Lateral geometric position error < 50 μm
– Vertical geometric position error < 10 μm
– Orthogonality error < 0.1°
– Resolution 4 μT
– Standard measurement range ± 100 mT

– Extended measurement ranges ± 200 mT, ± 800 mT, ± 2’000 mT

– Measurement rate up to 250 Hz

Standard features

– Integrated temperature sensor
– LabVIEW software for visualization, analysis, and recording

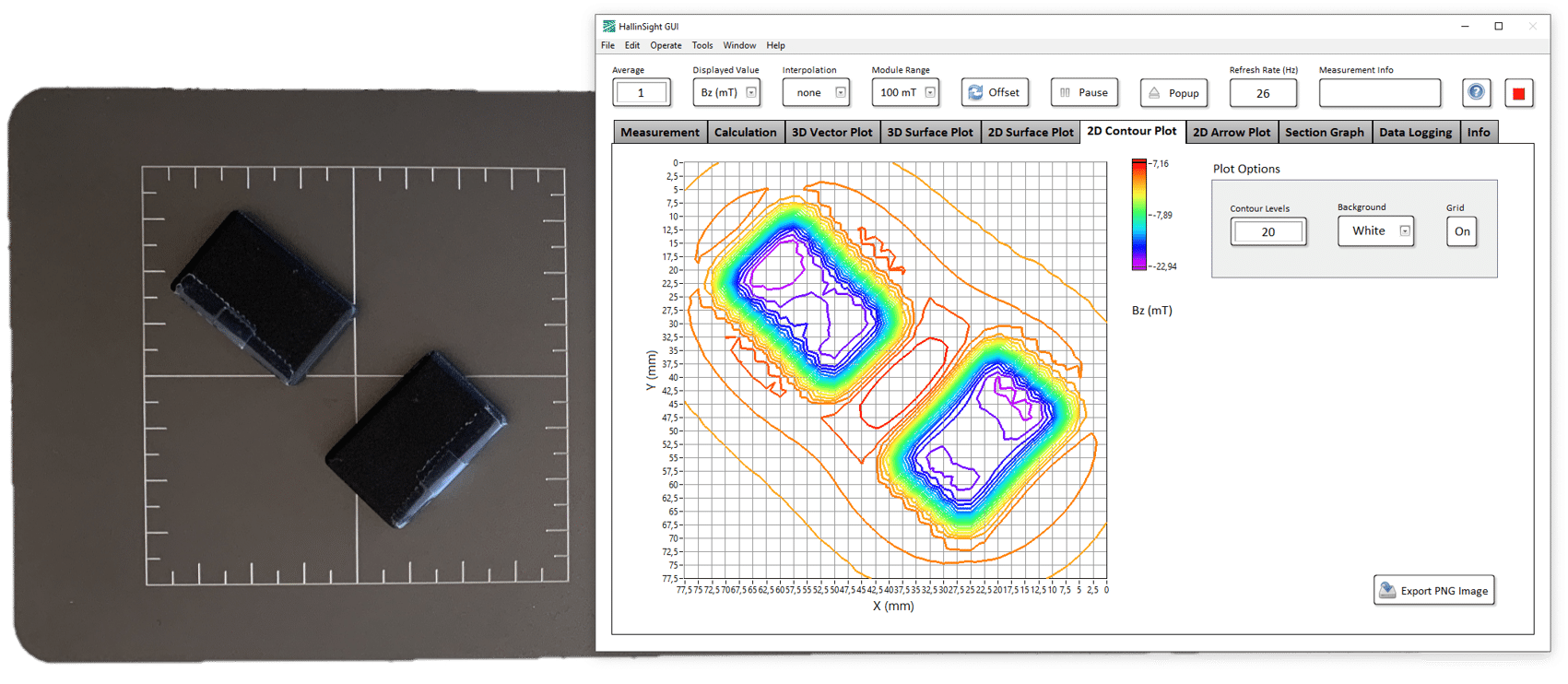

– Plots: vector, surface, contour, sections
– Point measurements: angles, min/max, gradients
– Communication per USB with ASCII protocol

A solution for you

HallinSight® Hall Magnetic Field Cameras offer an off-the-shelf solution for mapping static magnetic fields such as permanent magnets or dynamic magnetic fields such as motors. We are eager to hear about your requirements – please contact us!
