PT2026 Rmn Précision Teslamètre

The world’s most precise magnetometer

Nuclear Magnetic Resonance is the most precise technology to measure magnetic fields, and the PT2026 is the most precise NMR magnetometer on the market. In optimal conditions, it achieves a precision of under ten parts per billion!

But precision is just one of the features brought by the PT2026: high fields, robustness to inhomogeneous fields, 33 Hz measurement speed, improved search time – the list goes on. The key is an instrument design, using modern RF and computer technology. The result is an NMR magnetometer that opens up a host of new application areas.

22’000 CHF

Main unit, with software and LabVIEW® driver

(prices are indicative)

High-precision field measurement

Field monitoring


Field regulation


Pushing back physical limitations

The PT2026’s astounding precision is due to a pulsed-wave (PW) NMR detector and advanced signal processing. It allows measuring minute effects such as the decay of the current in a superconducting magnet.

The PT2026 delivers unmatched measurement range and precision. It measures magnetic fields from 38mT to >30T at a precision of 10 ppb with the use of pulsed-wave NMR detection.

A physical limitation of the NMR technique is diminished performance in inhomogeneous fields. The PT2026 pushes back this boundary with an increased tolerance to field gradient. The instrument is capable of searching and detecting the NMR signal in a gradient of 1.35 mT/cm in a 1T field (1350 ppm/cm).

The PT2026 allows measurement rates of up to 33 Hz.

Improving the usability

The PT2026 makes NMR magnetometers easier to use. For example, the field ranges of the probes can be customized, and a single standard probe now covers the two most common field strengths in MRI, 1.5 and 3.0 T.

Another example is the dramatically shortened search time: using a built-in 3-axis Hall sensor, this annoying dead time before measurements can start is reduced from typically ten seconds to under a second.

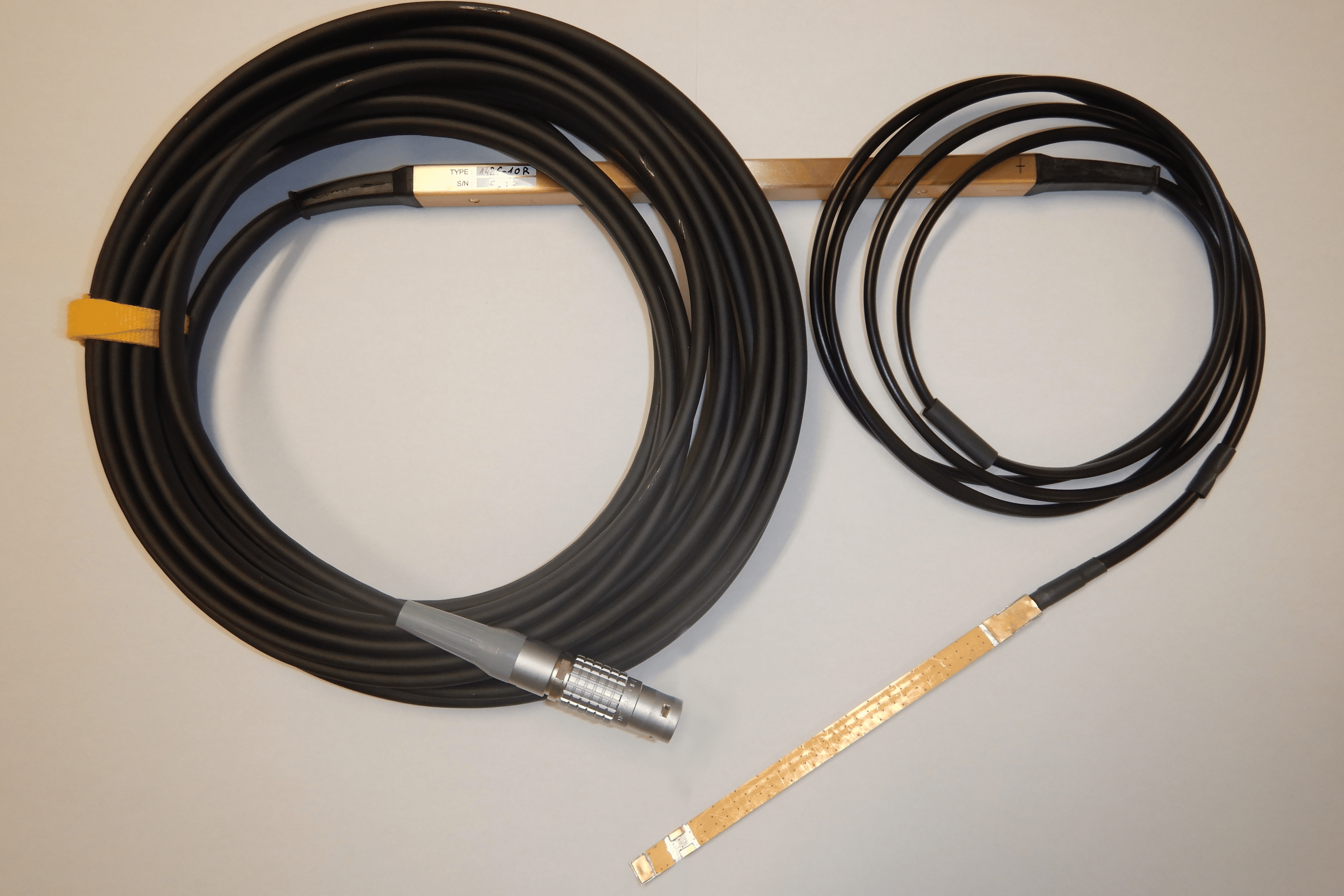

The “remote” probe design, probe 1426, features a small measurement head connected to the probe electronics by a coaxial cable. This allows access to gaps down to 6.5 mm, and is ideal for high-radiation environments. It also paves the way for cryo-compatible probes.

Like its predecessor PT2025, you can monitor the NMR signal on an oscilloscope, providing you with low-level, real-time information of what the instrument is doing.

Fitting into the laboratory

The PT2026 provides USB and Ethernet interfaces, and supports the industry-standard USBTMC/USB488 and VXI-11 protocols.

The included software provides a powerful user interface, right out of the box. Or you can write a custom application, using National Instruments LabVIEW®and the included driver. For other programming languages, you can send industry-standard SCPI commands (Standard Commands for Programmable Instruments), using any standard VISA library.

You can use the PT2026’s trigger-in capability if you need to trigger a magnetic-field measurement at a precise moment in time. Alternatively, trigger-out allows you to trigger another instrument when the field reaches a given value.

And if you have a high-precision 10 MHz reference clock in your laboratory, you can plug it directly into the PT2026, thus overriding the internal time base. This also obviates the need for periodic calibration.


To measure more than one point with the PT2026 use multiples probes with a MUX6026 multiplexer.

Coupled with a PT2026 and probe, the RG8026 NMR field regulation module provides closed-loop magnetic field regulation at the level of parts per million!

The PT2026 is also the main unit of the Magnetic Field Camera MFC2046. After a firmware upgrade and the addition of a field camera adapter, FCA7046, you will be able to map any magnet using the MFC9046 or the MFC9146 probe-arrays.
