  • <p>THE UNRIVALED REFERENCE</p>

    THE UNRIVALED REFERENCE

    The PT2025 has established itself as the unrivaled magnetic-field reference for standards and research laboratories.

    more

Pricing

Model PT2025 NMR Precision Teslameter, bench-top unit.
19'435 CHF Model PT4025 NMR Precision Teslameter, 19 inch rack-mount unit. 21'840 CHF Prices are indicative

Downloads

Brochure
Manual
more

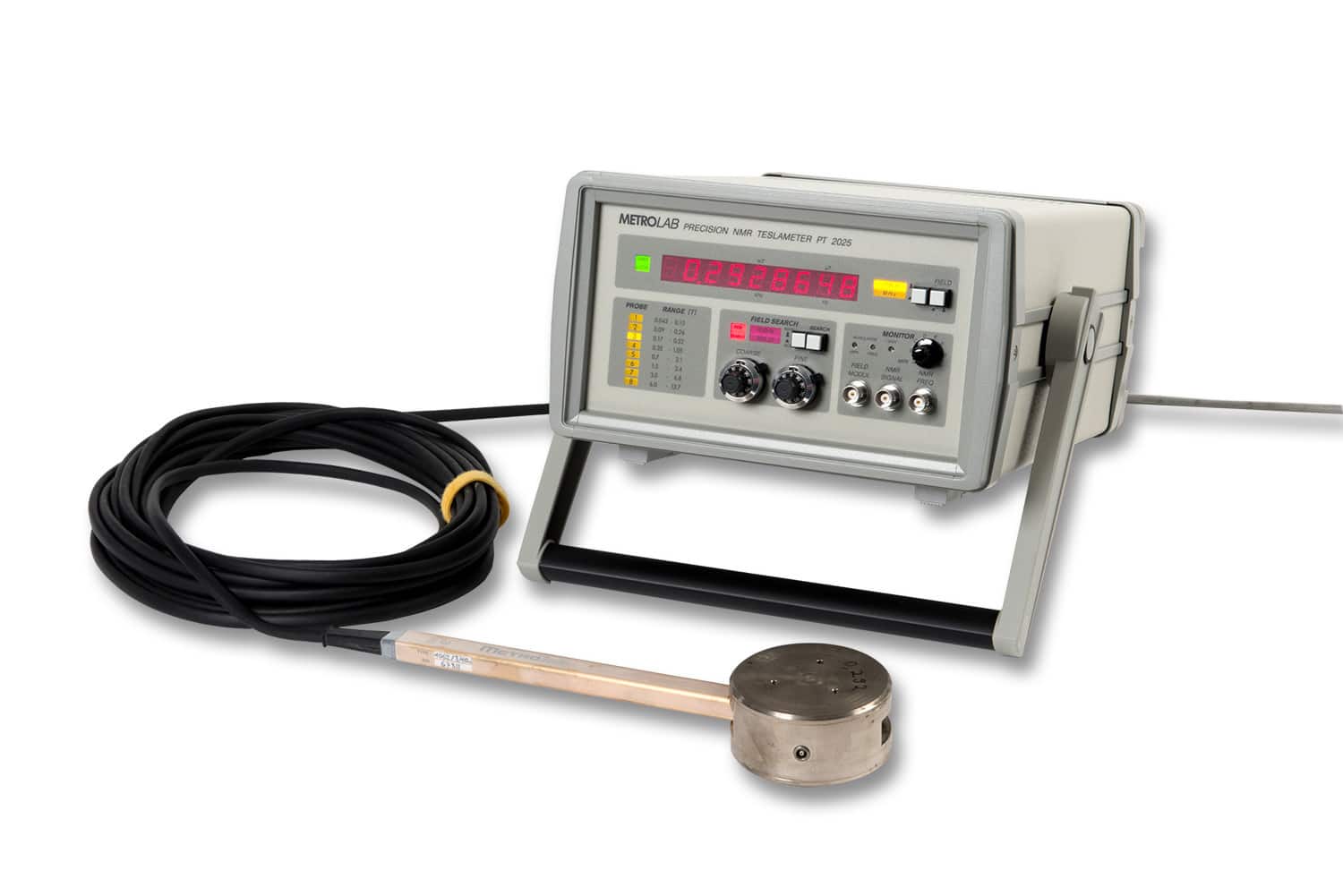

PT2025 NMR Precision Teslameter

A world standard

A range to over 13 Tesla, a precision of under 0.1 parts per million (ppm), an absolute accuracy of 5 ppm, and freedom of drift due to temperature or ageing have made the PT2025 the recognised gold standard of magnetometers.

With more than 1700 Metrolab Precision Teslameters shipped, NMR magnetometry has become an everyday tool for physicists, engineers and technicians throughout the world. The most common applications include research, magnet manufacturing and testing, and standards and calibration. Some accelerator and spectroscopy manufacturers build the PT2025 right into their products.

High tech made easy

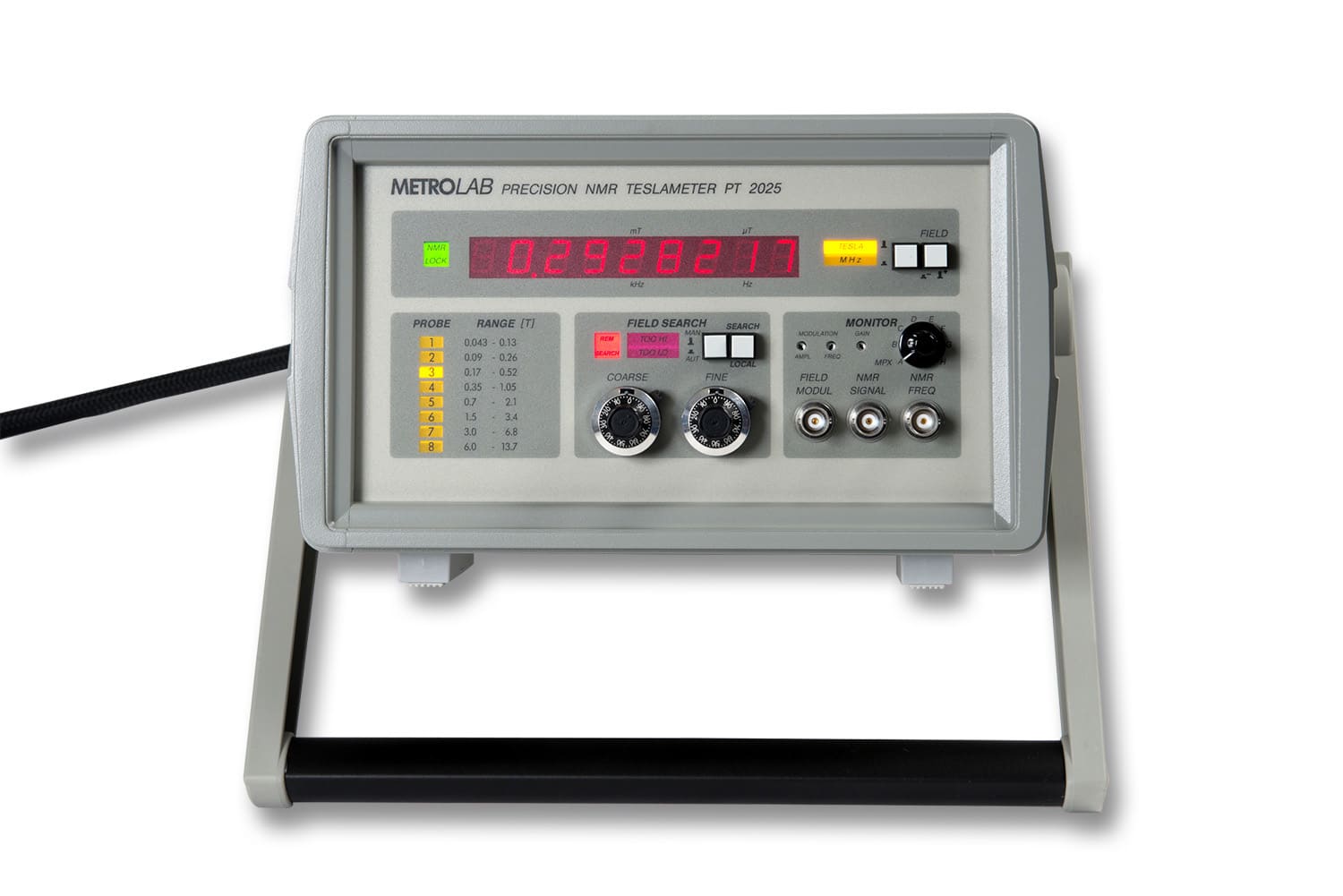

The industrial quality electronics and clearly organized front panel of the PT2025 make NMR magnetometry accessible to any technician. The large, bright field-strength display can be read from across the room. The green LOCK light clearly shows when the instrument has locked onto the resonance.

The field search may be performed manually or automatically. The probe selection switch directly controls an optional multiplexer, and an indicator panel shows the currently selected probe range. Finally, the signal-monitoring sub-panel allows the expert user to optimize the measurement.

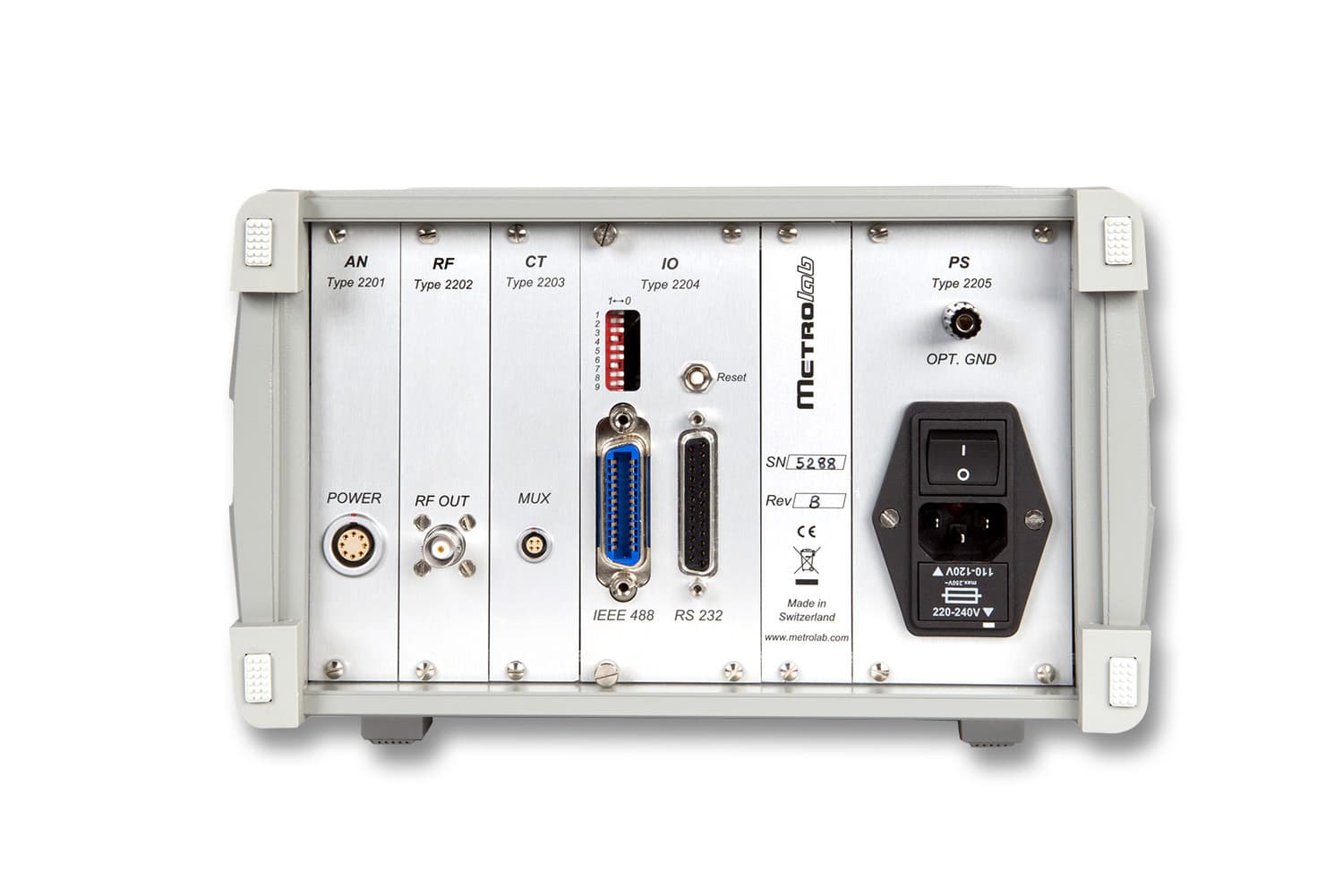

The back panel provides connectors for power, a probe or, optionally, a multiplexer, and an RS-232 computer interface, optionally also GPIB. The PT4025 3U rack-mount model allows one or two teslameters to be secured in a 19” rack.

Different probes for different applications

Robust proton-sample probes are available for fields from 43 mT to 2.1 T, whereas deuterium-sample probes (heavy water in glass ampoules) cover the range of 1.5 T to 13.7 T. Each probe has a range of 300% (proton) or 225% (deuterium), for example from 0.7 to 2.1 T, providing a generous overlap with the next-higher and next-lower ranges. The standard cable length is 10 m, but cable lengths of up to 100 m can be special-ordered.

The model 1062 probes provide a compact and easy-to-handle solution for general-purpose use. The model 1060 probes place most of the active electronics in a separate box - the model 1030 Amplifier - and are therefore appropriate for high-radiation environments. Finally, the model 1082 and 1080 subminiature probes are designed for installations with tight space constraints.

  • AMP1030 Amplifier

    more
  • 1060 7m probe

    more
  • 1062 10m probe with integral amplifier

    more
  • 1080 mini flexible 7m probe

    more
  • 1082 mini flexible 10m probe with integral amplifier

    more
  • MUX2030 Probe multiplexer

    more
  • MUX2031 Probe multiplexer amplifier

    more
  • MUX2032 Multiplexer of multiplexers

    more
  • RG2040 NMR field regulation module

    more
  • HS2060 High stability frequency counter

    more
  • 1100-20 Gradient compensation coil up to 20 G/cm

    more
  • 1100-40 Gradient compensation coil up to 40 G/cm

    more
  • ACC-1060 Gradient compensation coil up to 100 G/cm

    more
  • CC2020 Carrying case for PT2025 system

    more
  • 1010-10M Cable

    more
  • 1010-16M Cable

    more
  • 1011-10M Cable

    more
  • 1011-16M Cable

    more
  • 1012-10M Cable

    more
  • 1015-10M Cable

    more
  • 1015-16M Cable

    more
  • EXT-1062-5M Cable

    more

Typical applications

• High-precision field measurement
• Field monitoring
• Calibration
• Field regulation
